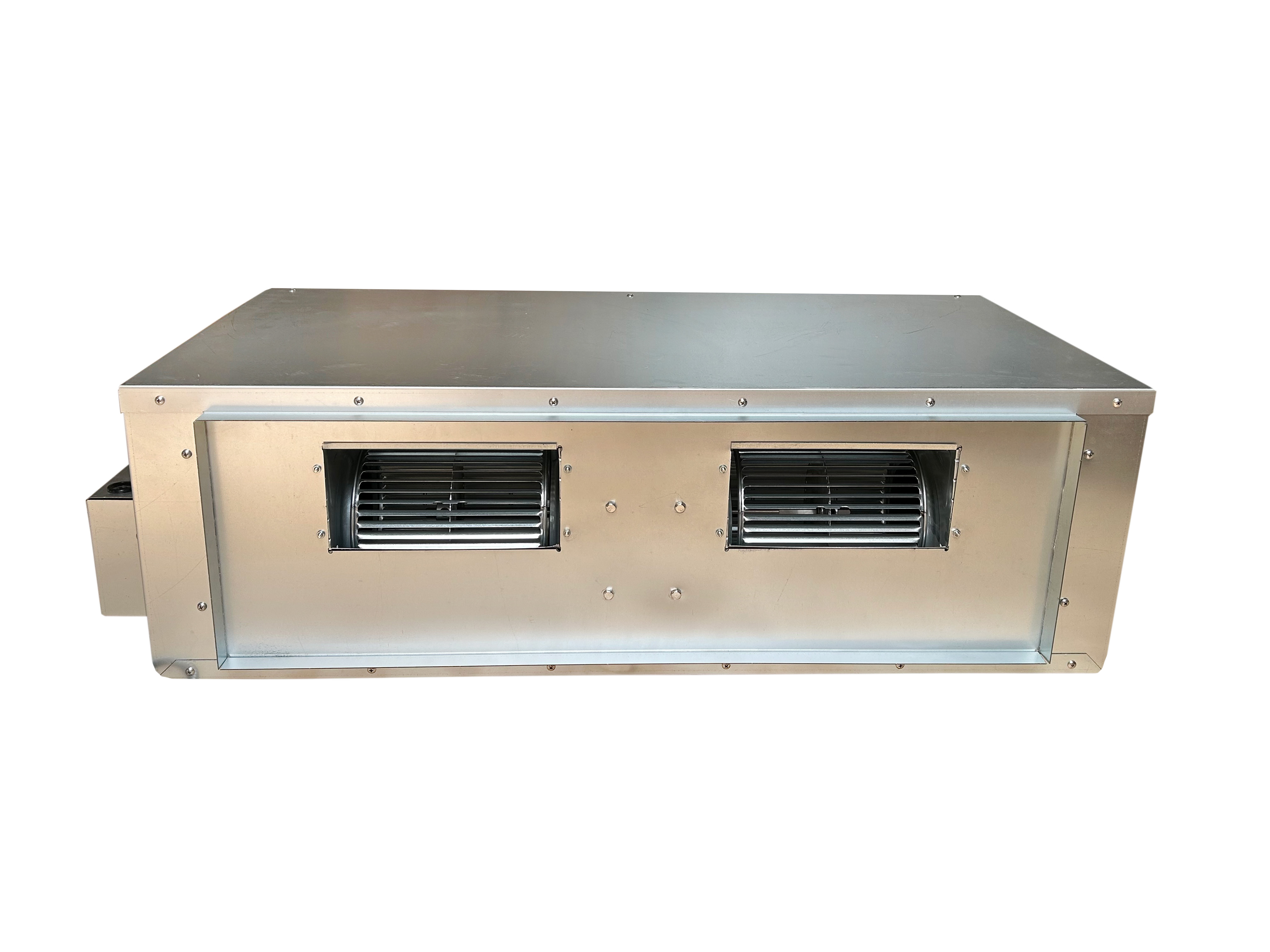

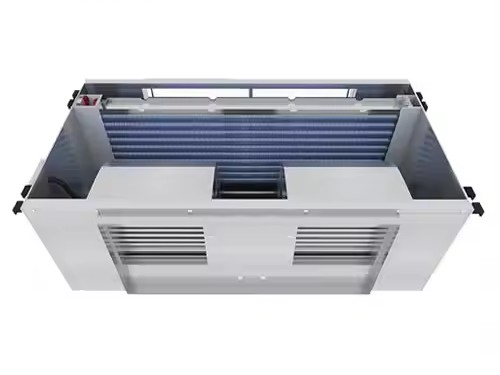

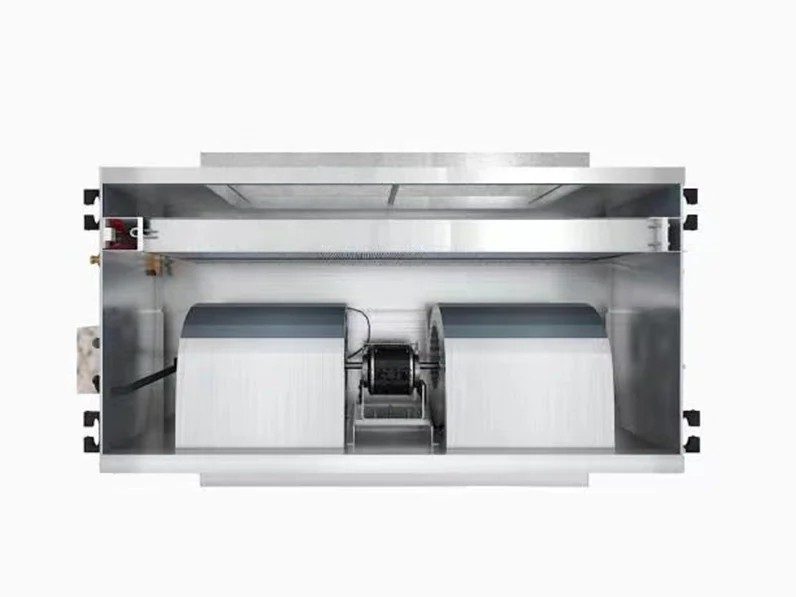

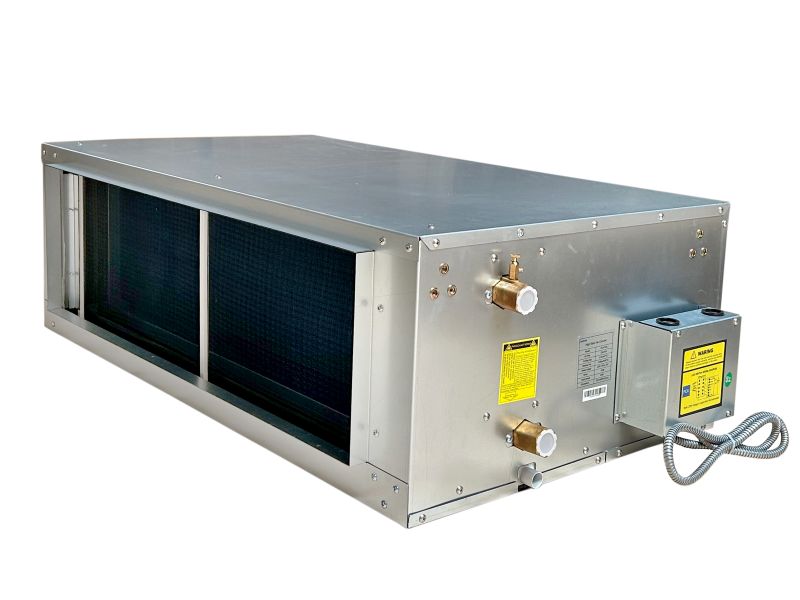

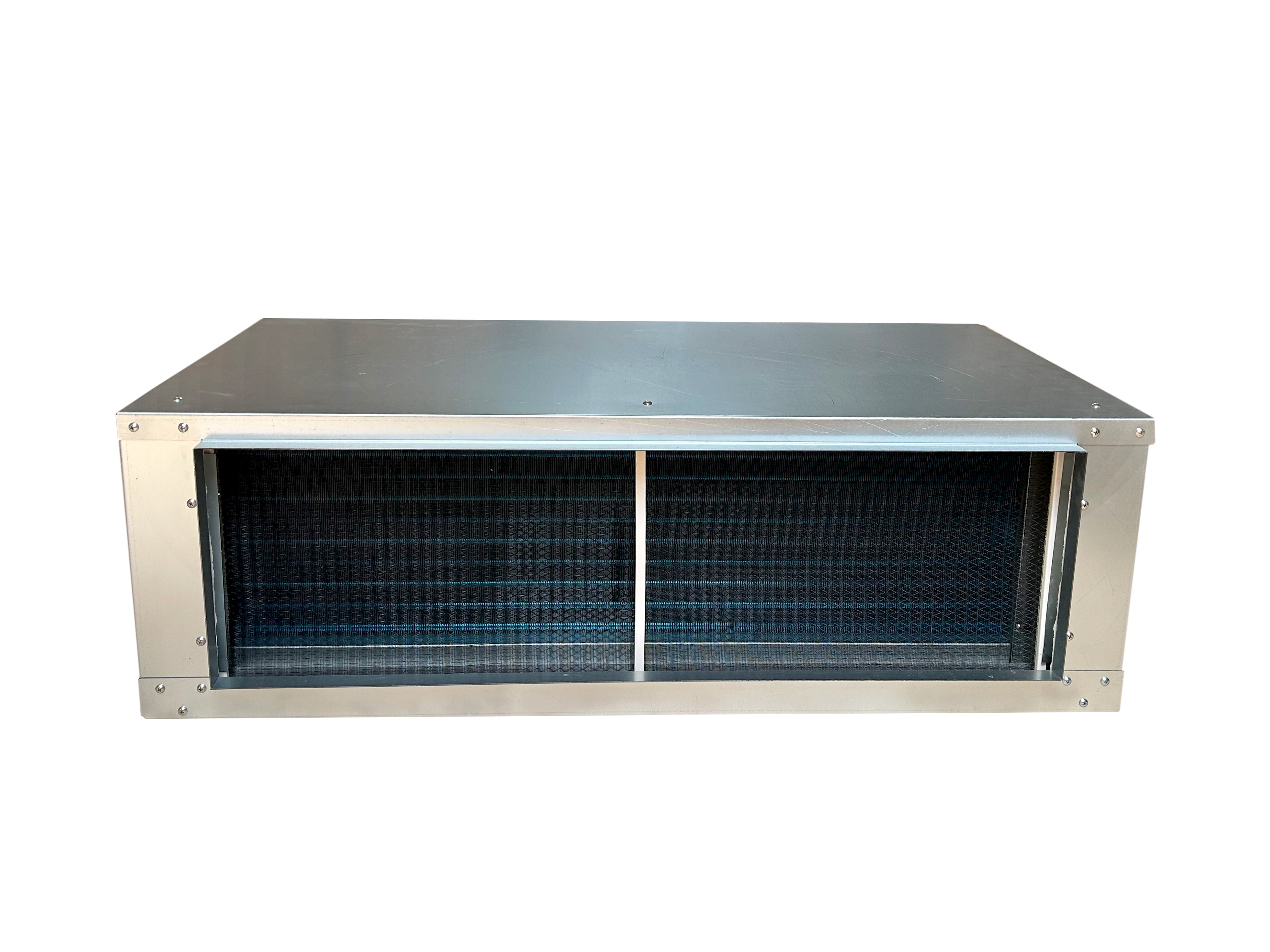

Bravair Pro HCA
High Static Air Pressure Concealed Ceiling Fan Coil
-Available in 5 sizes: from 3.7kW to 15.9kW
-Up to 100Pa of static air pressure
-Great for long duct applications or large spaces
-Three-speed AC motor with long lifetime
-Available in 5 sizes: from 3.7kW to 15.9kW
-Up to 100Pa of static air pressure
-Great for long duct applications or large spaces
-Three-speed AC motor with long lifetime
Specifications
| Model | Unit | HCA -060 | HCA-080 | HCA-110 | HCA-170 | HCA-250 |
|---|---|---|---|---|---|---|
| Cooling power (1) (Outlet 7ο C) | W | 3700 | 4900 | 7500 | 11400 | 15900 |
| Heating power (2) (Outlet 60ο C) | W | 2700 | 4050 | 5400 | 6750 | 8100 |
| Air flow rate | (m3/h) | 680/510/340 | 1020/765/510 | 1360/1020/680 | 2040/1530/1020 | 3060/2295/1630 |
| Noise level | dB(A) | 44 | 47 | 52 | 56 | 60 |
| Water connections | Inch | ¾’’ | ¾’’ | ¾’’ | ¾’’ | ¾’’ |
| Static air pressure | Pa | 60 | 60 | 80 | 100 | 100 |
| Weight | kg | 33 | 35 | 45 | 70 | 90 |
| Dimensions ( L *W *H) | mm | 755*470*245 | 855*470*245 | 955*470*245 | 1055*470*245 | 1055*470*245 |
