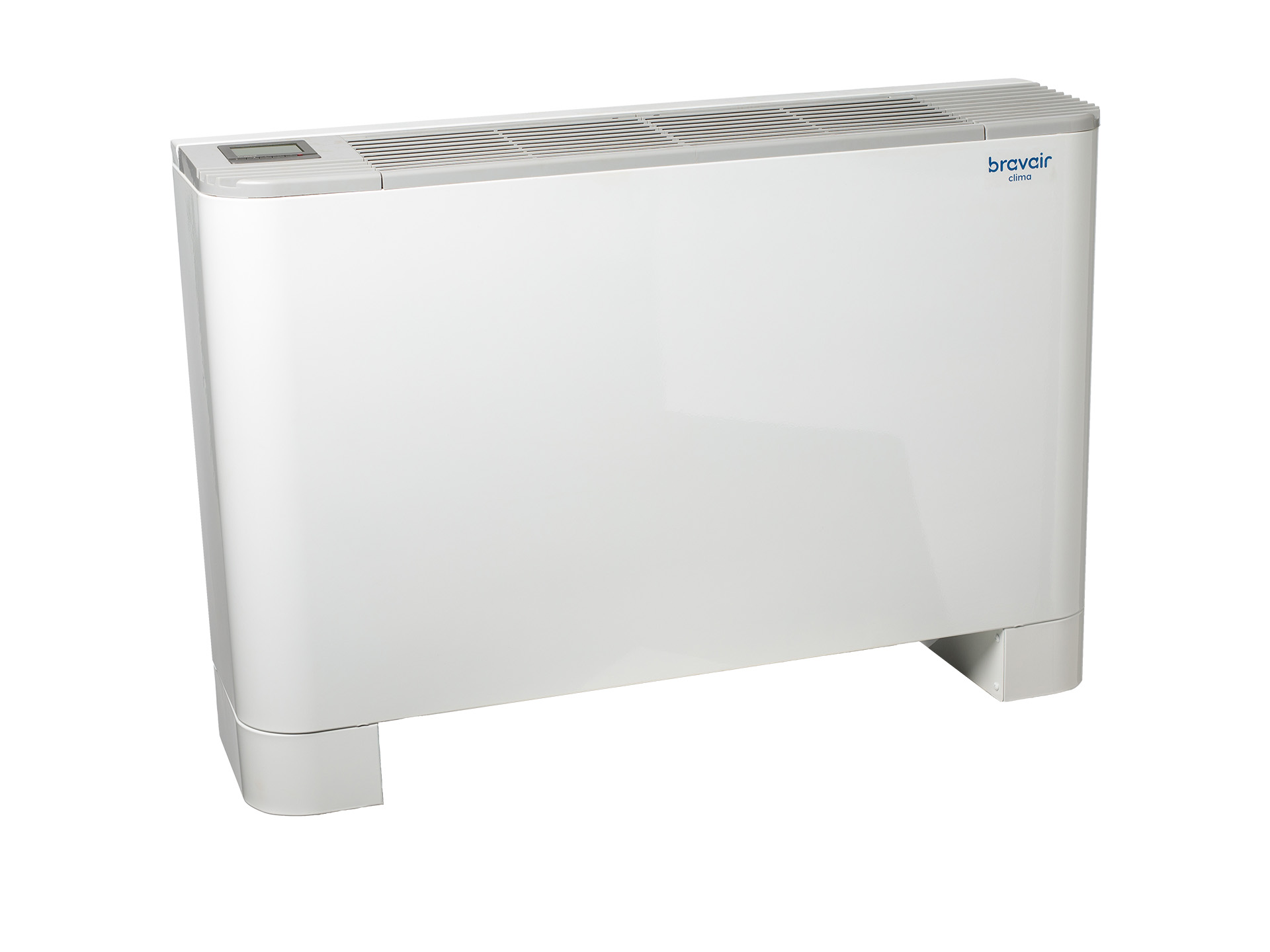

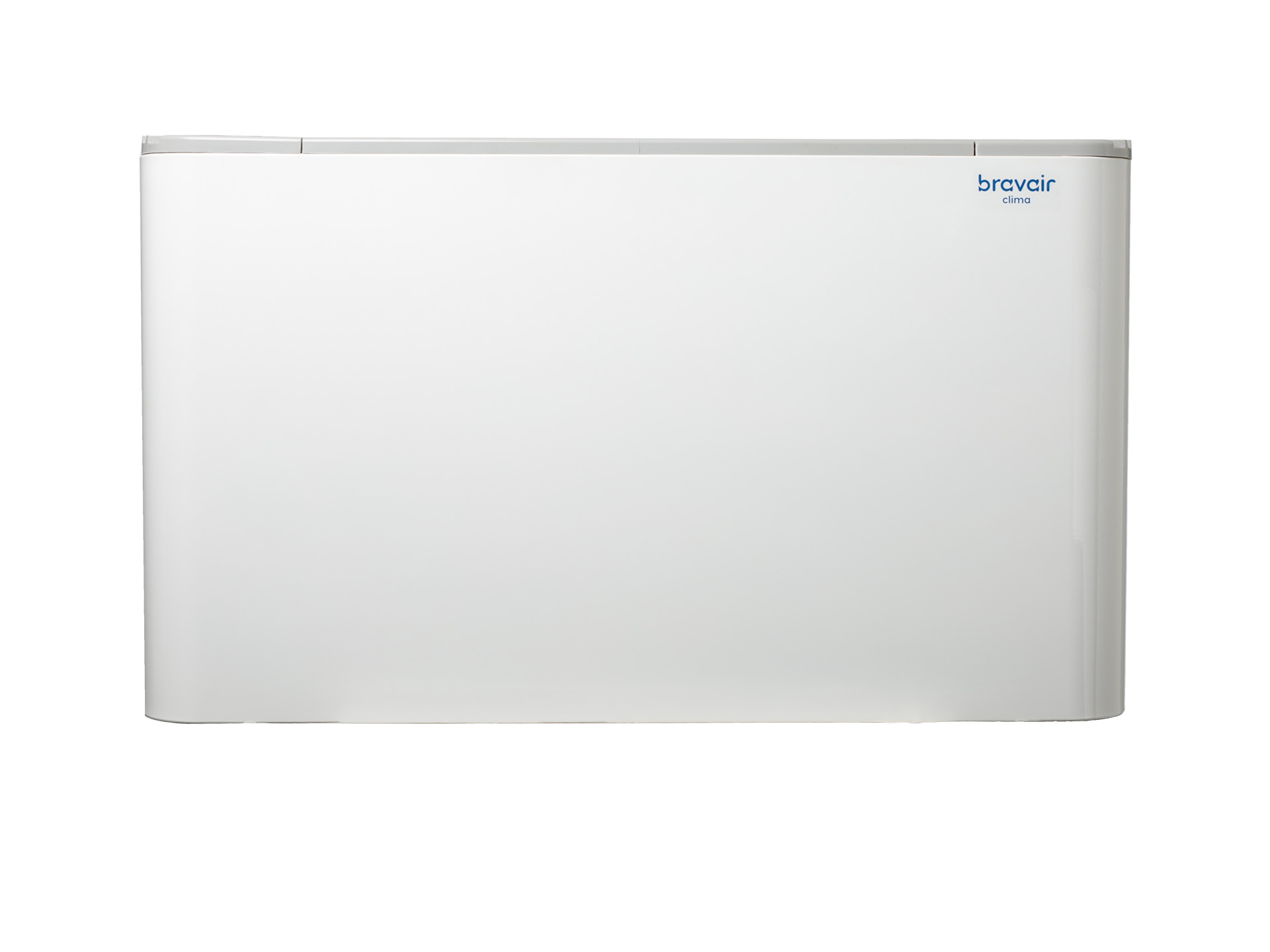

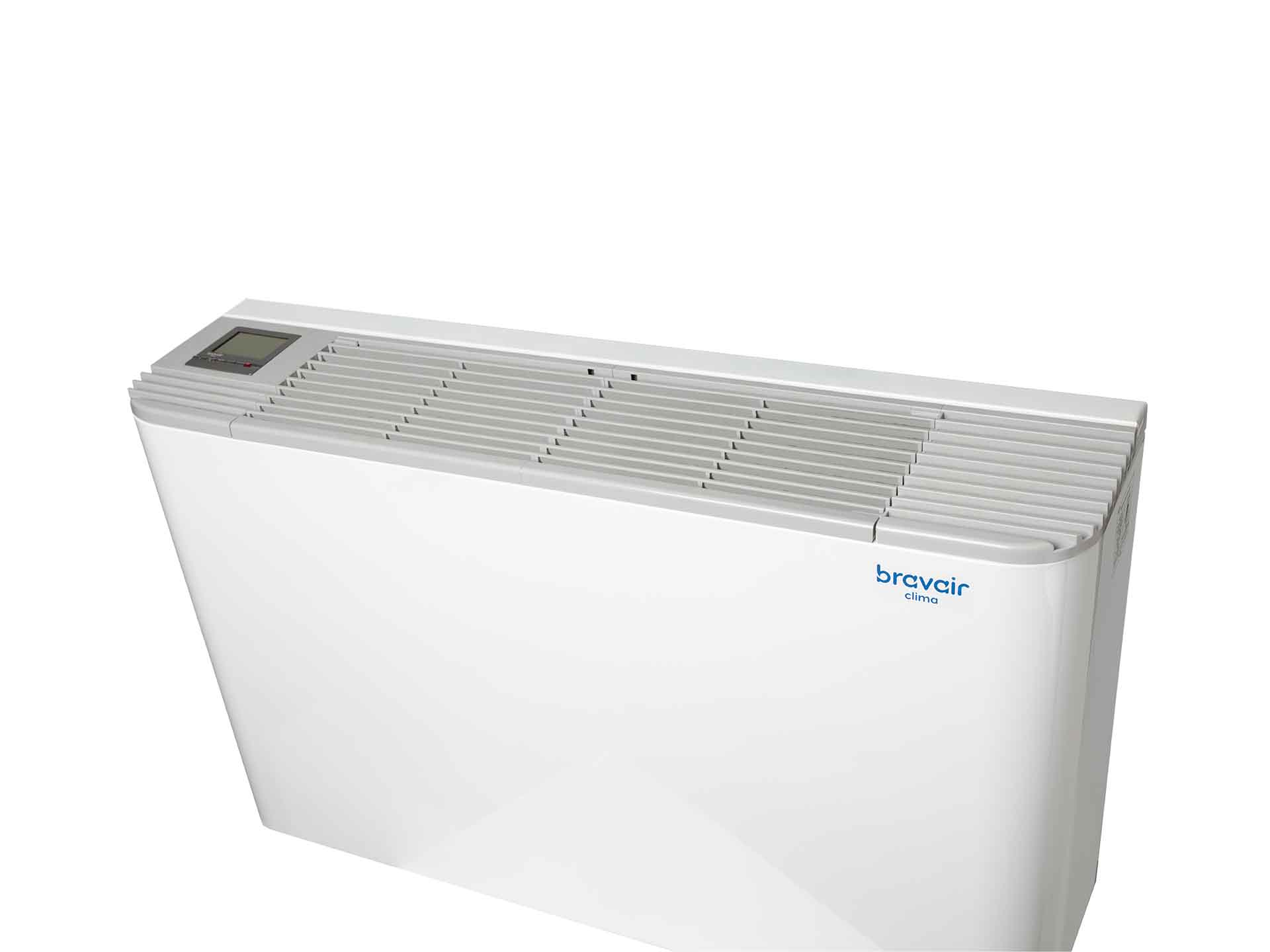

Bravair Pro FCL
Floor – Ceiling Fan Coil with room thermostat.
Powerful, reliable units that make installation and maintenance easy.
Key Features:
- 9 sizes are available, from 1.8kW to 12.6kW (cooling power), with right or left hand water connections.

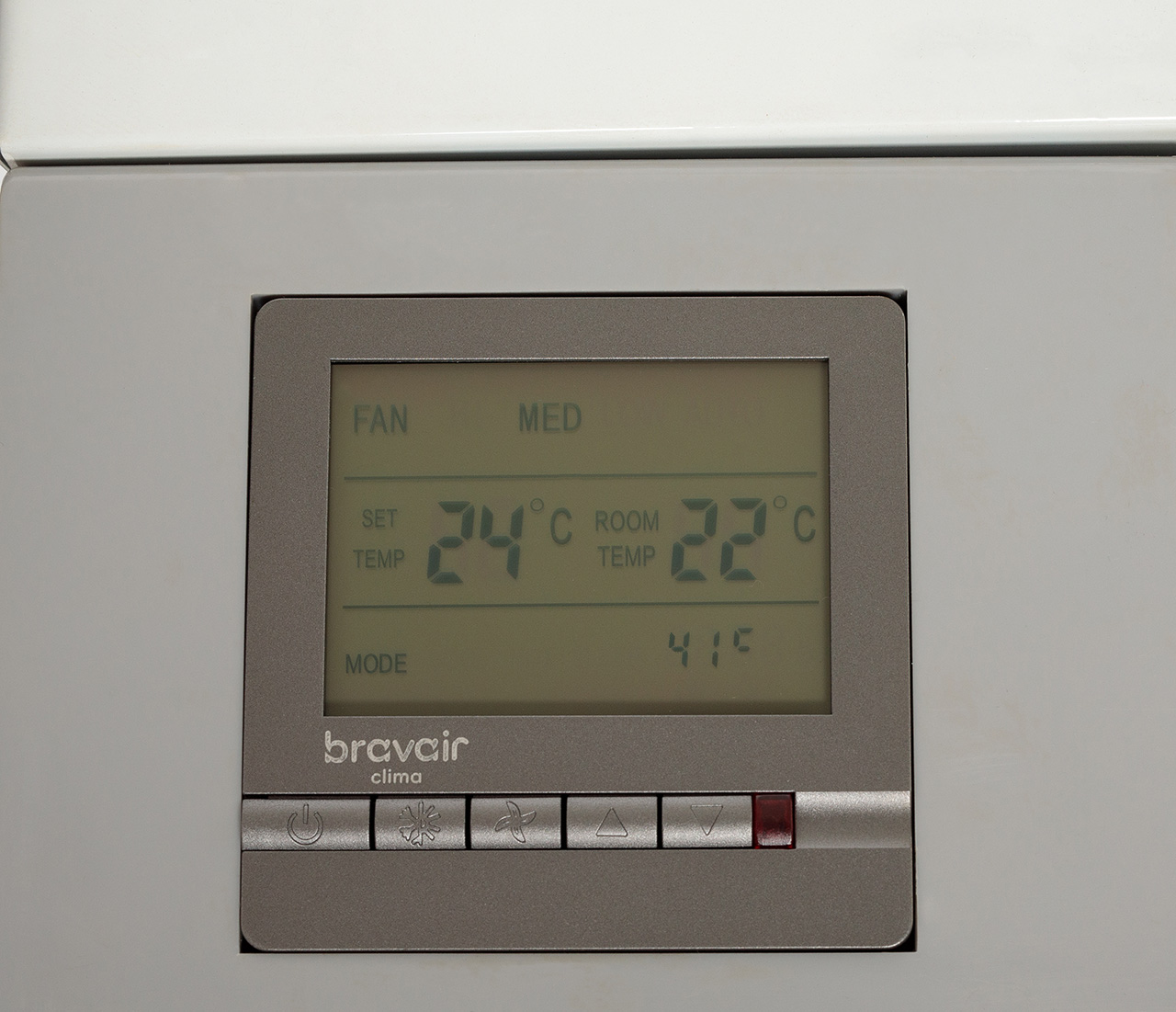

- They include a room thermostat that can measure the temperature of the water in the heat exchanger to ensure that the fan only runs when the water is at the right temperature

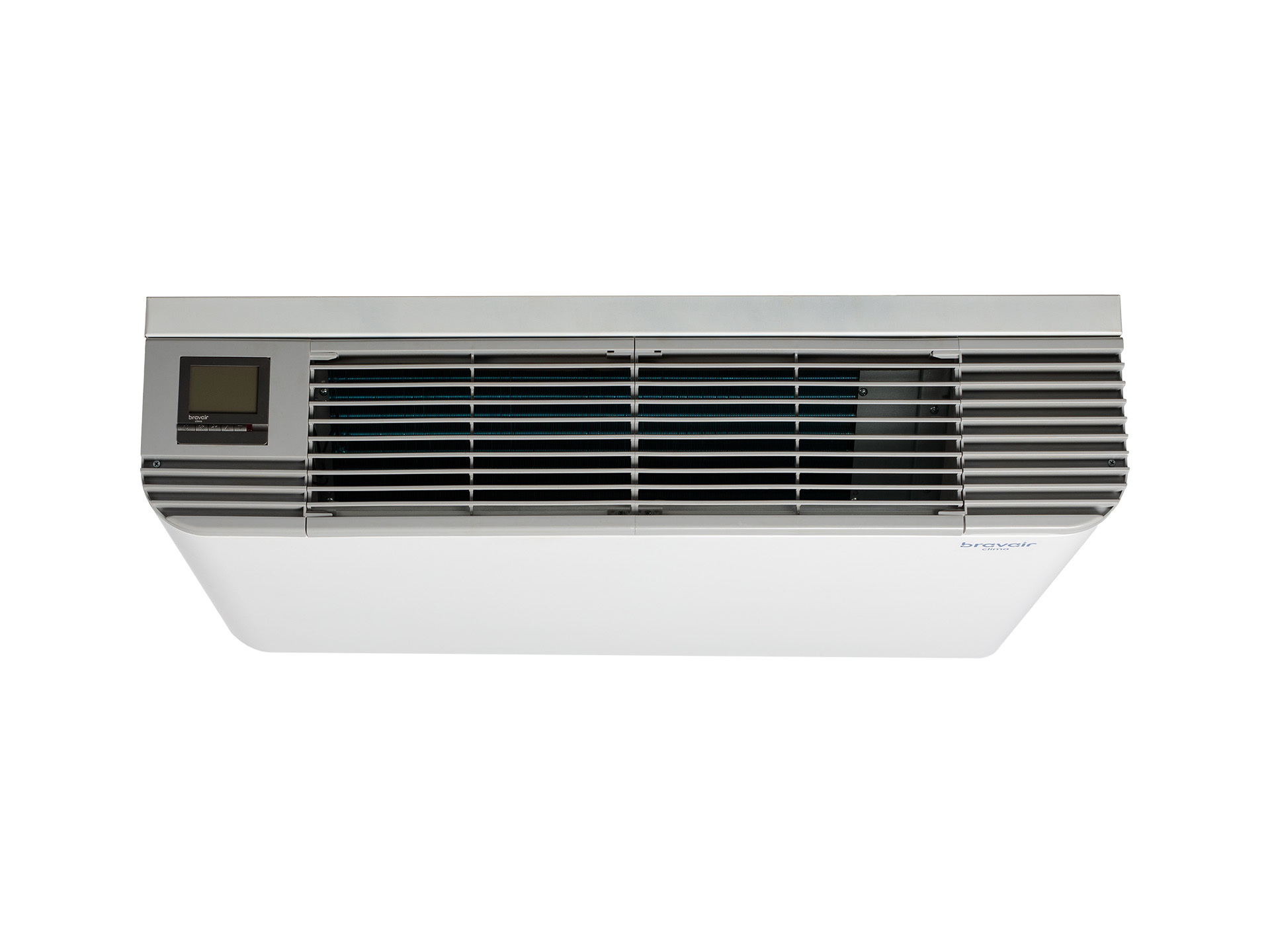

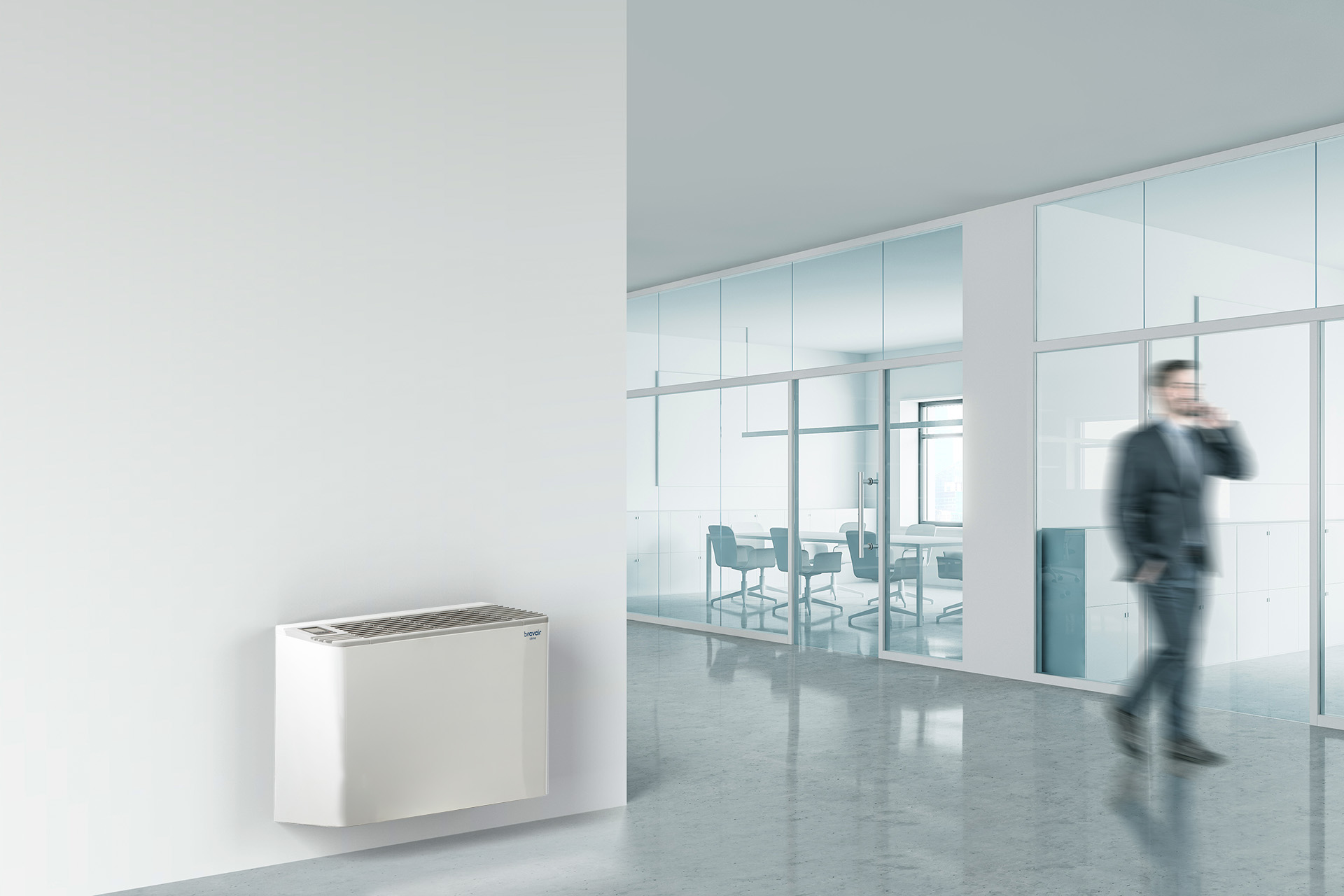

- Thanks to the special condensation tray and mounting holes, you can mount the Bravair Pro FCL on the floor, wall or ceiling.
Their discreet and practical design allows access to water supplies by removing only one screw.
For full access to all components, remove the front of the unit with 7 screws.
Furthermore, you can easily remove the washable air filter without tools from the underside of the unit.
Powerful, reliable units that make installation and maintenance easy.
Key Features:
- 9 sizes are available, from 1.8kW to 12.6kW (cooling power), with right or left hand water connections.
- They include a room thermostat that can measure the temperature of the water in the heat exchanger to ensure that the fan only runs when the water is at the right temperature
- Thanks to the special condensation tray and mounting holes, you can mount the Bravair Pro FCL on the floor, wall or ceiling.
Their discreet and practical design allows access to water supplies by removing only one screw.
For full access to all components, remove the front of the unit with 7 screws.
Furthermore, you can easily remove the washable air filter without tools from the underside of the unit.
Specifications
| Model | Unit | FCL-030 | FCL-040 | FCL-060 | FCL-070 | FCL-080 | FCL-110 | FCL-140 | FCL-160 | FCL-190 |
|---|---|---|---|---|---|---|---|---|---|---|
| Cooling capacity* (Outlet7οC) | W | 1800 | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | 12600 |
| Heating capacity** (Outlet 50οC) | W | 1950 | 2750 | 3750 | 4650 | 6300 | 8000 | 9800 | 11200 | 13000 |
| Heating capacity*** (outlet 70οC) | W | 3500 | 4800 | 6200 | 7400 | 8800 | 11600 | 14800 | 17700 | 19300 |
| Air flow rate | (m3/h) | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
| Maximum power consumption | W | 37 | 52 | 62 | 76 | 96 | 134 | 152 | 189 | 228 |
| Noise level (H/M/L) | dB(A) | 37/34/28 | 39/35/29 | 41/36/32 | 43/39/35 | 45/42/37 | 47/45/39 | 48/44/41 | 50/47/43 | 52/49/45 |
| Water connections | Inch | 3/4” | 3/4” | 3/4” | 3/4” | 3/4” | 3/4” | 3/4” | 3/4” | 3/4” |
| Static air pressure | Pa | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Weight | Kg | 13.6 | 16 | 17 | 18.2 | 21 | 26.4 | 31 | 33.7 | 36.6 |
| Dimensions [L*235(W)*555(H)] | mm | 790 | 940 | 980 | 1100 | 1260 | 1450 | 1680 | 1880 | 2070 |
| Height on supporting feet | mm | 640 | 640 | 640 | 640 | 640 | 640 | 640 | 640 | 640 |
