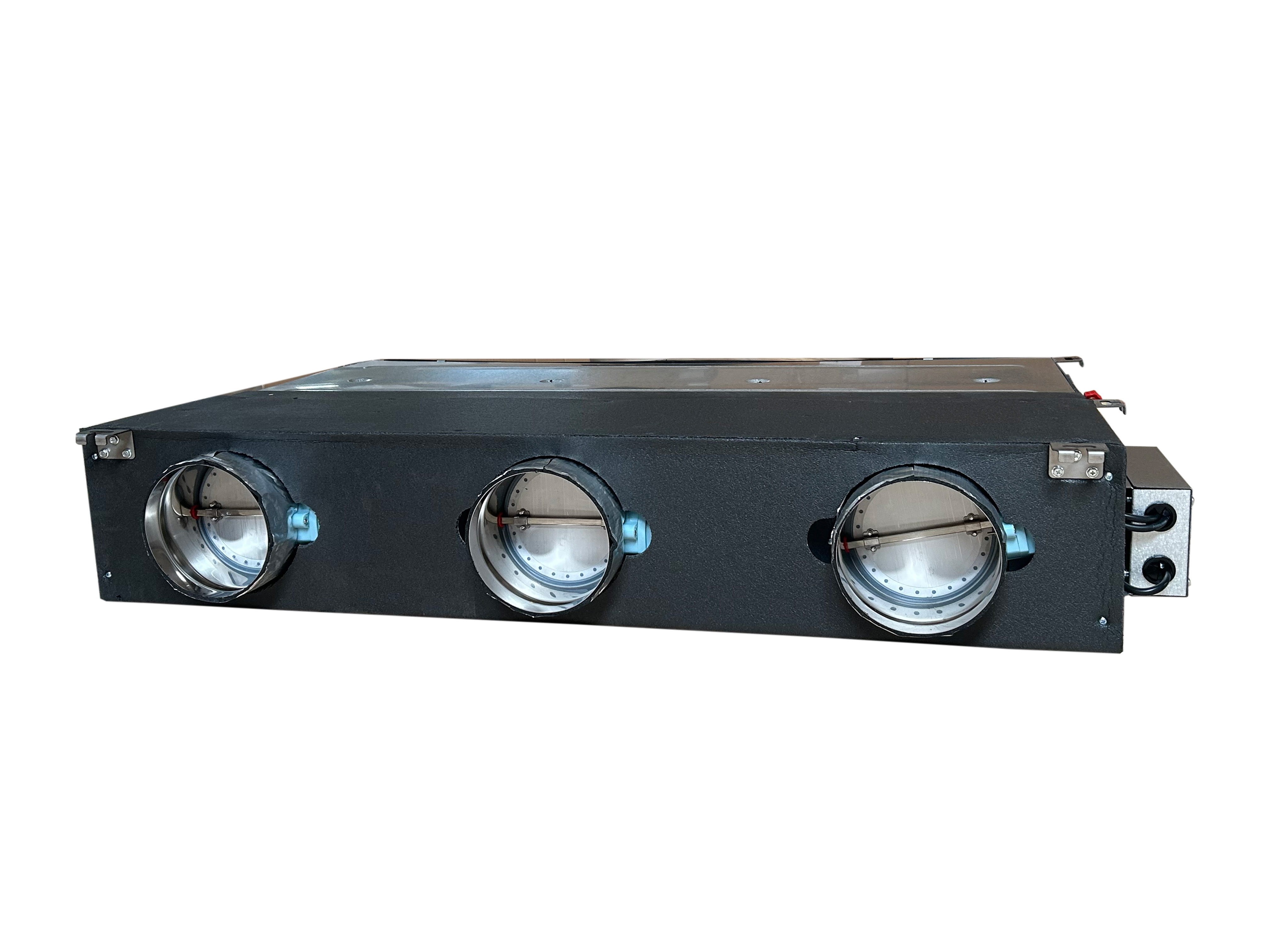

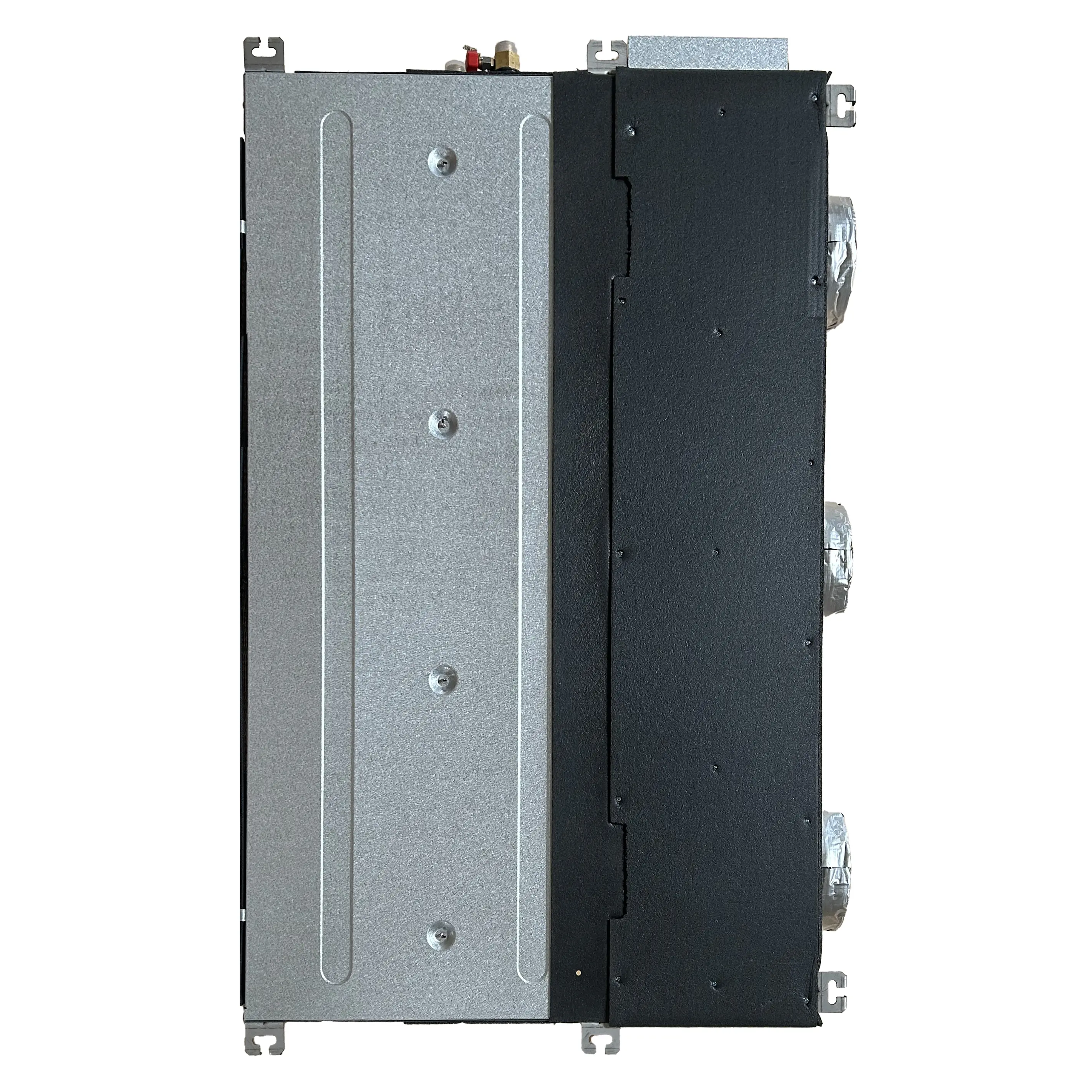

Bravair Pro CCD
Slim Ceiling Concealed Fan Coil Unit of medium static air pressure.
With a plenum and electric dampers for up to 4 individually controlled spaces.
- 6 sizes available: 2.85 to 9.5kW
- Up to 4 electric dampers of φ150cm diameter
- BLDC Inverter fan motor for low noise levels and low electricity consumption
- Internal sound insulation with wave pattern
The included control board receives signals from each individual room, opens the corresponding damper and adjust the fan speed.
Ideal for commercial or residential applications where ceiling space is limited in each room.
With a plenum and electric dampers for up to 4 individually controlled spaces.
- 6 sizes available: 2.85 to 9.5kW
- Up to 4 electric dampers of φ150cm diameter
- BLDC Inverter fan motor for low noise levels and low electricity consumption
- Internal sound insulation with wave pattern
The included control board receives signals from each individual room, opens the corresponding damper and adjust the fan speed.
Ideal for commercial or residential applications where ceiling space is limited in each room.
Specifications
| Model | Unit | CCD-040 | CCD-060 | CCD-070 | CCD-080 | CCD-110 | CCD-140 |
|---|---|---|---|---|---|---|---|
| Cooling capacity* (Outlet7οC) | W | 2850 | 3730 | 4700 | 5730 | 7810 | 9490 |
| Heating capacity** (Outlet 60οC) | W | 5000 | 6520 | 7220 | 9110 | 11870 | 14810 |
| Air flow rate | (m3/h) | 516 | 697 | 860 | 1030 | 1480 | 1720 |
| Maximum power consumption | W | 33 | 45 | 52 | 83 | 63 | 116 |
| Maximum Noise level | dB(A) | 34 | 40 | 41 | 43 | 43 | 45 |
| Water connections | Inch | ¾ “ | 3/4” | 3/4” | 3/4” | 3/4” | 3/4” |
| Static air pressure | Pa | 60 | 60 | 60 | 60 | 60 | 60 |
| Water pressure drop | kPa | 30 | 30 | 30 | 40 | 40 | 40 |
| Weight | Kg | 13.5 | 15.1 | 16.4 | 18.8 | 25.4 | 26.7 |
| Dimensions | mm | 926*745*190 | 926*745*190 | 1176*745*190 | 1176*745*190 | 1646*745*190 | 1646*745*190 |
