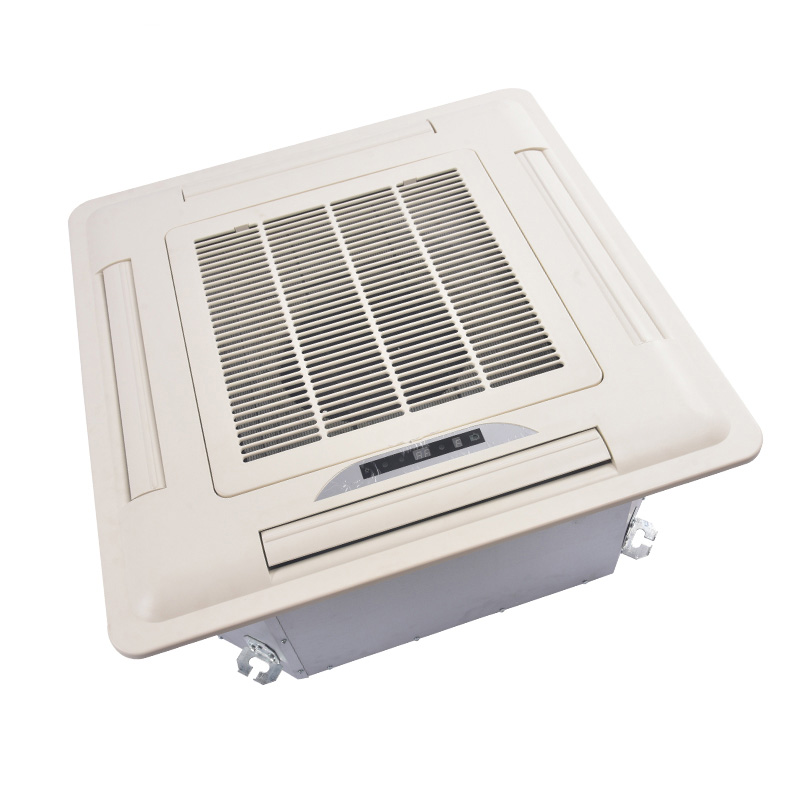

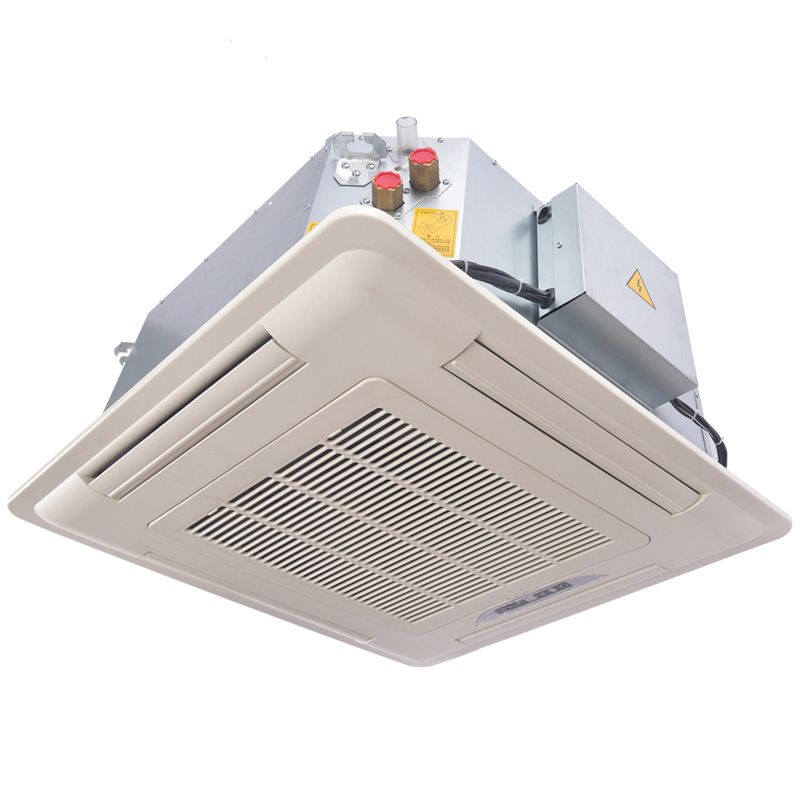

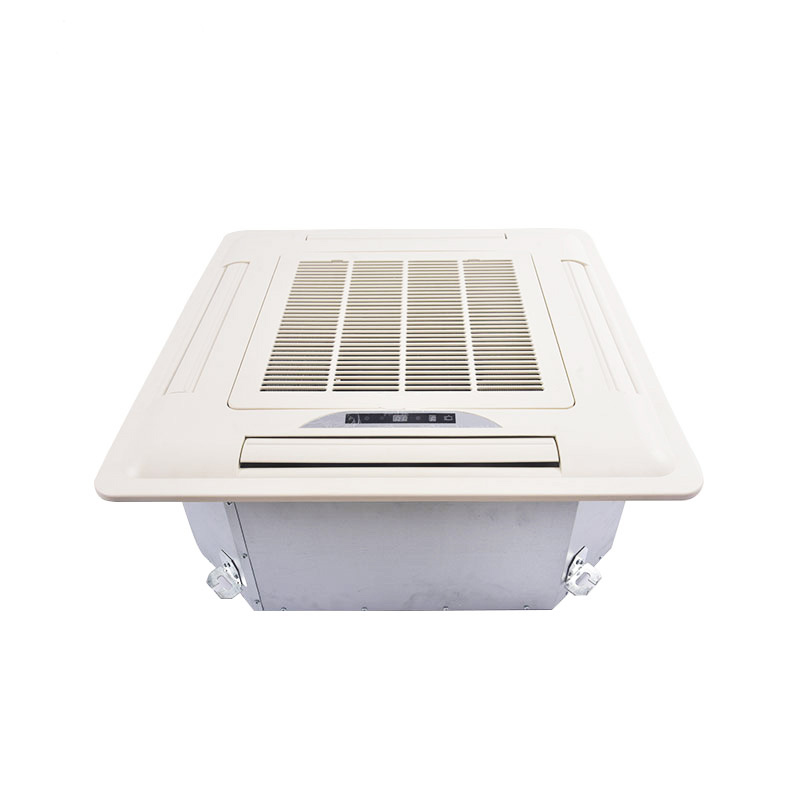

Bravair Pro C4W
Four-way Ceiling Fan Coil Cassette
-Ideal for the distribution of large heating or cooling power from a central point in the room.
-The 4-way louvres ensure even air diffusion throughout the room while creating a comfortable, natural flow.
The Bravair Pro C4W cassettes have a simple, user-friendly structure to facilitate installation and maintenance.
The integrated board controls and coordinates all components. This ensures the harmonious execution of all functions.
You can operate the unit with the included wireless remote control. You also have the option to choose the wired controller which allows you to control up to 31 ceiling cassettes.
The units also support the ModBus protocol for centralized control and automation of a larger number of units.
-Ideal for the distribution of large heating or cooling power from a central point in the room.
-The 4-way louvres ensure even air diffusion throughout the room while creating a comfortable, natural flow.
The Bravair Pro C4W cassettes have a simple, user-friendly structure to facilitate installation and maintenance.
The integrated board controls and coordinates all components. This ensures the harmonious execution of all functions.
You can operate the unit with the included wireless remote control. You also have the option to choose the wired controller which allows you to control up to 31 ceiling cassettes.
The units also support the ModBus protocol for centralized control and automation of a larger number of units.
Specifications
| Model | Unit | CCS-040 | CCS-060 | CCS-070 | CCS-080 | CCS-110 | CCS-140 |
|---|---|---|---|---|---|---|---|
| Cooling capacity (Outlet 7οC) | W | 2950 | 3800 | 4800 | 5600 | 7400 | 9000 |
| Heating capacity (Outlet 45οC) (2) | W | 2900 | 3600 | 4500 | 5400 | 7200 | 8900 |
| Heating capacity (Outlet 60οC) (3) | W | 4400 | 5700 | 7100 | 8400 | 11100 | 13500 |
| Noise level | dB(A) (H/M/L) | 39/36/33 | 41/38/35 | 43/41/36 | 45/42/38 | 46/43/39 | 48/45/40 |
| Water pressure drop | kPa | 30 | 30 | 30 | 40 | 40 | 40 |
| Static air flow | Pa | 12 | 12 | 12 | 12 | 12 | 12 |
| Water connections | inch | ¾ “ | ¾ “ | ¾ “ | ¾ “ | ¾ “ | ¾ “ |
| Motor power | W | 12 | 12 | 25 | 25 | 25+25 | 40+40 |
| Air flow rate | m3/h | 530 | 700 | 875 | 1030 | 1360 | 1750 |
| Number of motors | Νο | 1 | 1 | 1 | 1 | 2 | 2 |
| Number of fans | Νο | 1 | 2 | 2 | 2 | 3 | 4 |
| Dimensions (LxWxH) | mm | 763*495*190 | 913*495*190 | 1023*495*190 | 1163*495*190 | 1593*495*190 | 1593*495*190 |
| Packaging dimensions (LxWxH) | mm | 770*510*225 | 940*510*225 | 1050*510*225 | 1190*510*225 | 1670*510*225 | 1670*510*225 |
| Weight | kg | 13.5 | 15.1 | 16.4 | 18.8 | 25.4 | 26.7 |
