Bravair Home FCS
Minimum noise level.
Smart operation.
High aesthetics.
The creation of the ideal, comfortable environment is easier than ever, with digital display – 5-speed control, Wi-Fi connectivity and great unit lifetime.
-BLDC fan motor, with adjustable rpm range
-Extremely quiet
-Low power consumption
-Slim design of 130mm
-Easy operation with touch screen or remote control
-Fan start – stop hydrostat
-Automatic fan speed switching
-WiFi connectivity

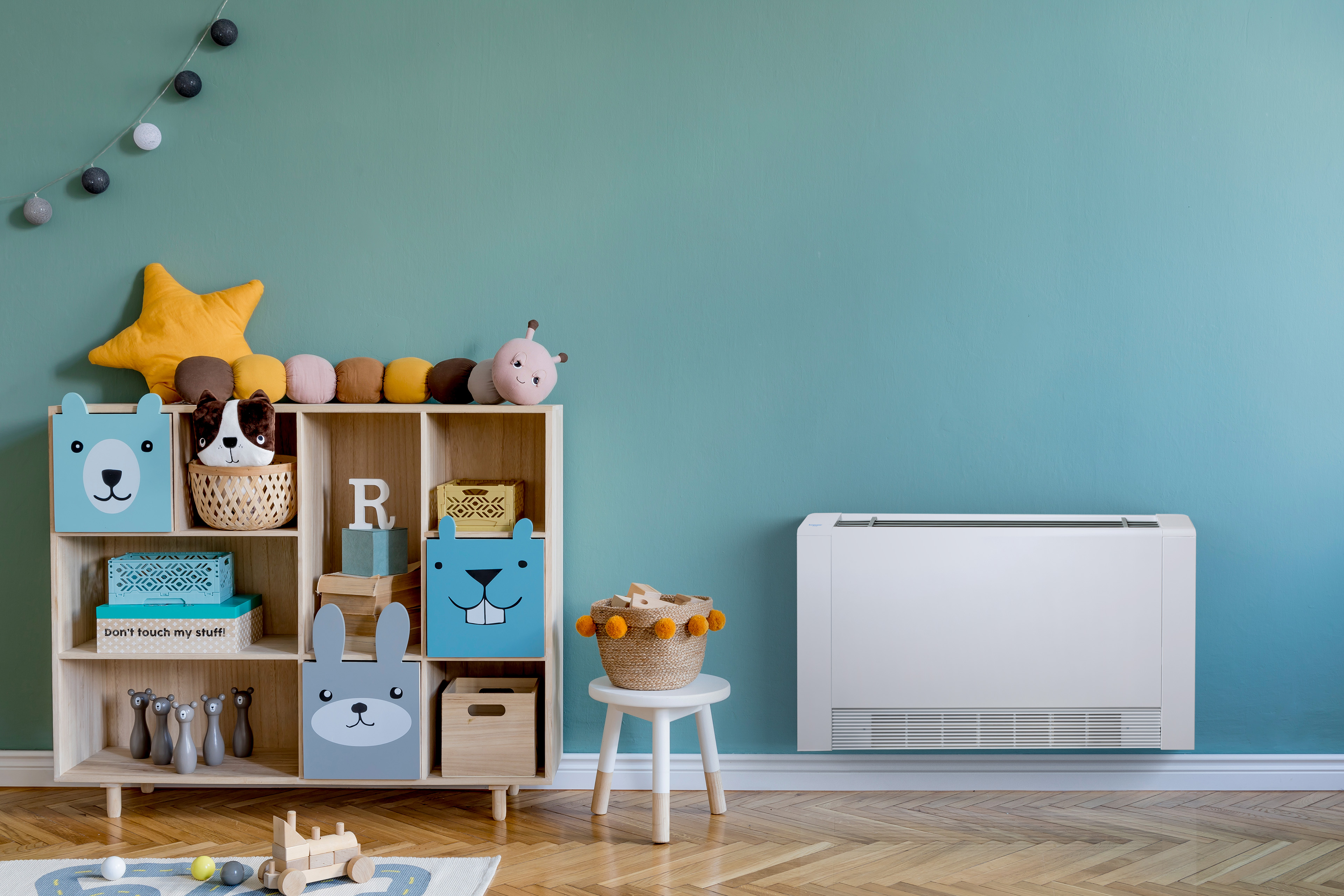

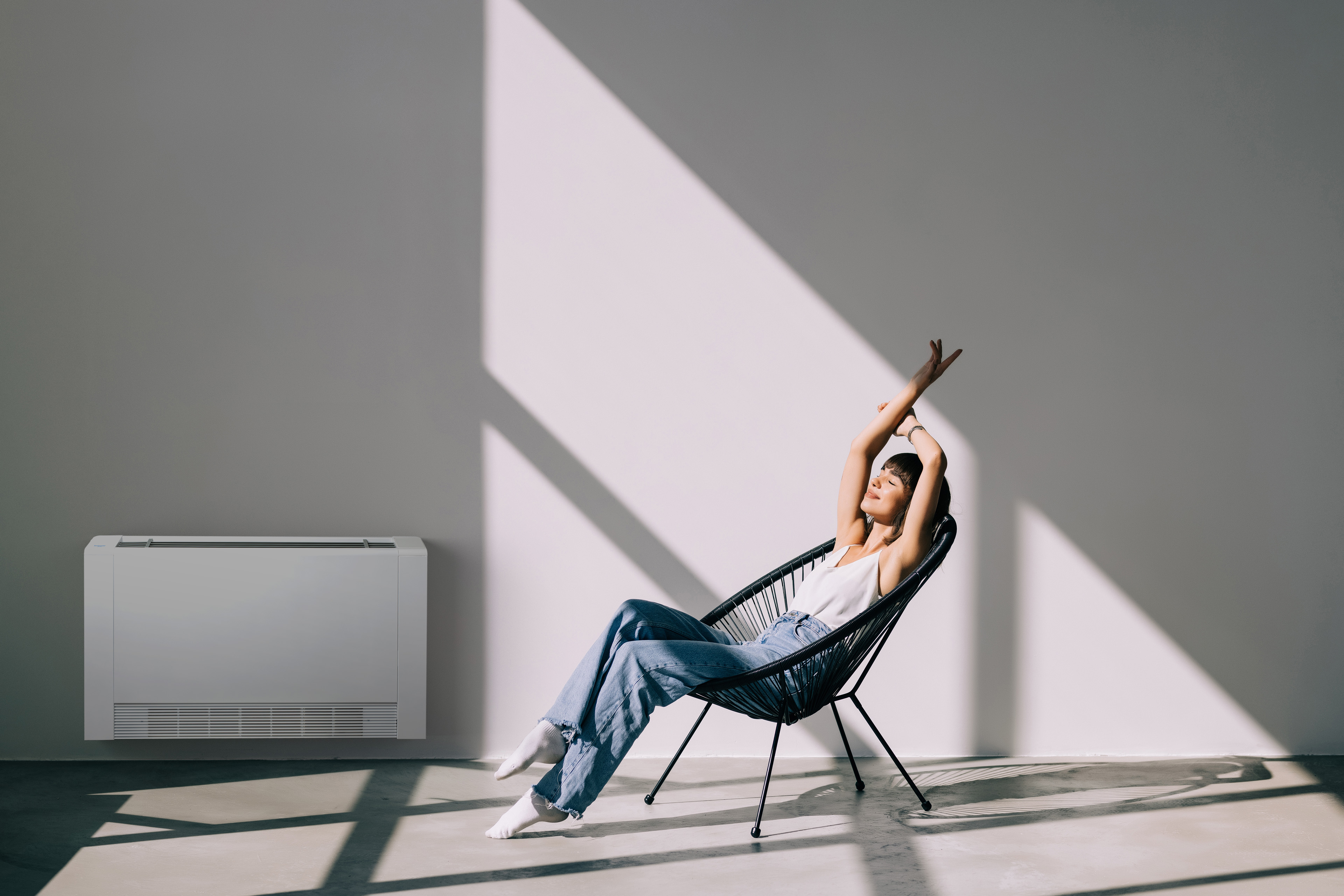

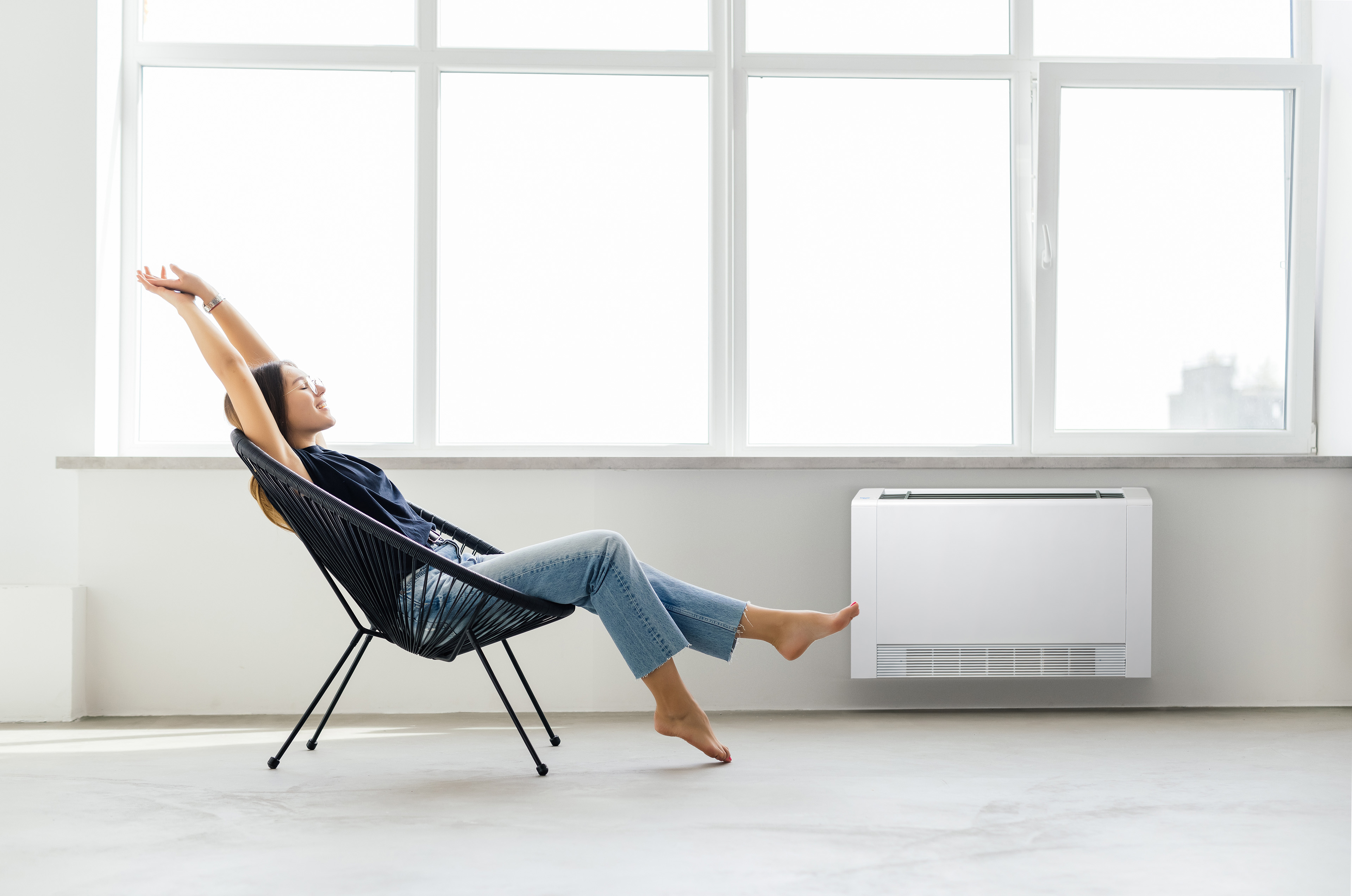

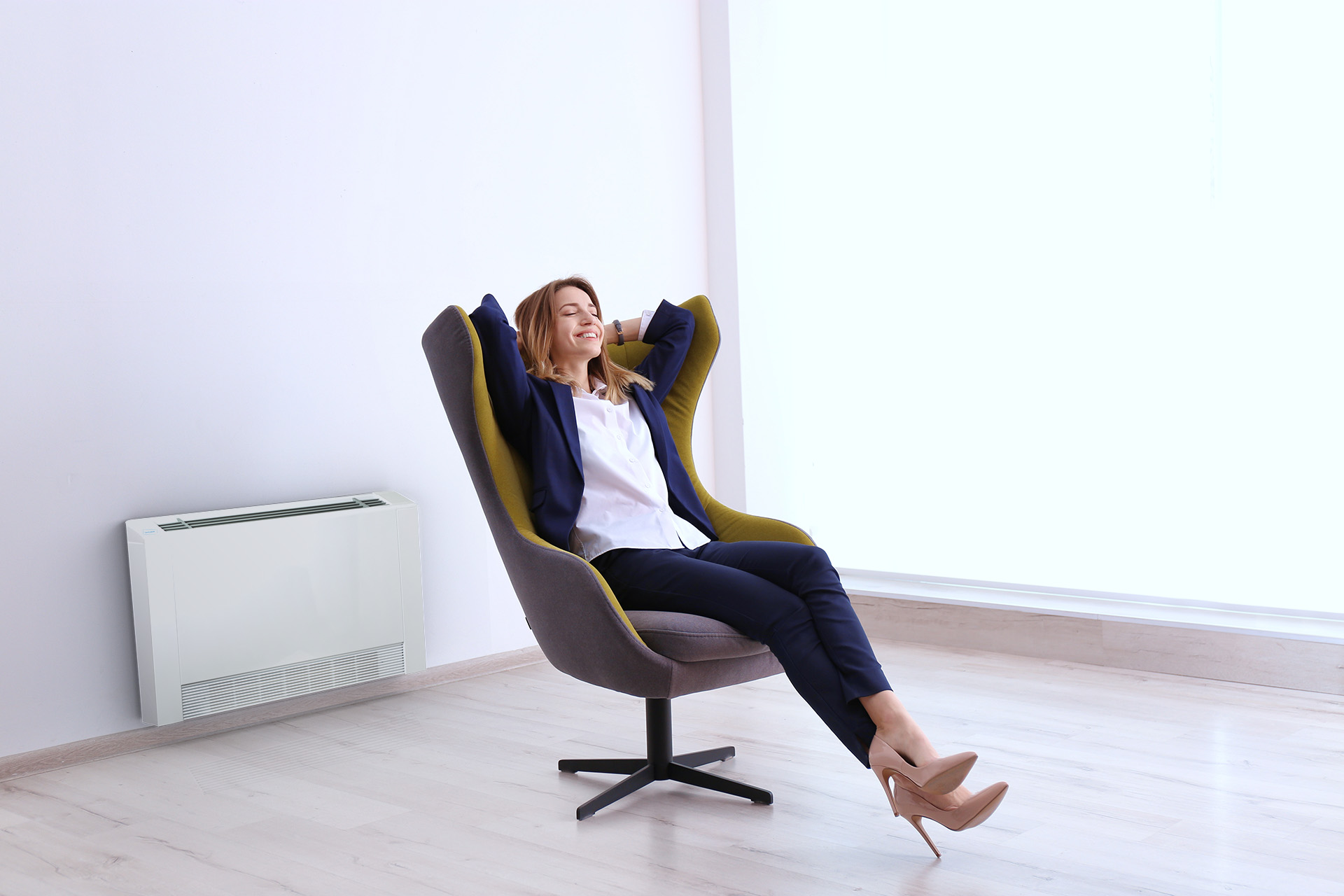

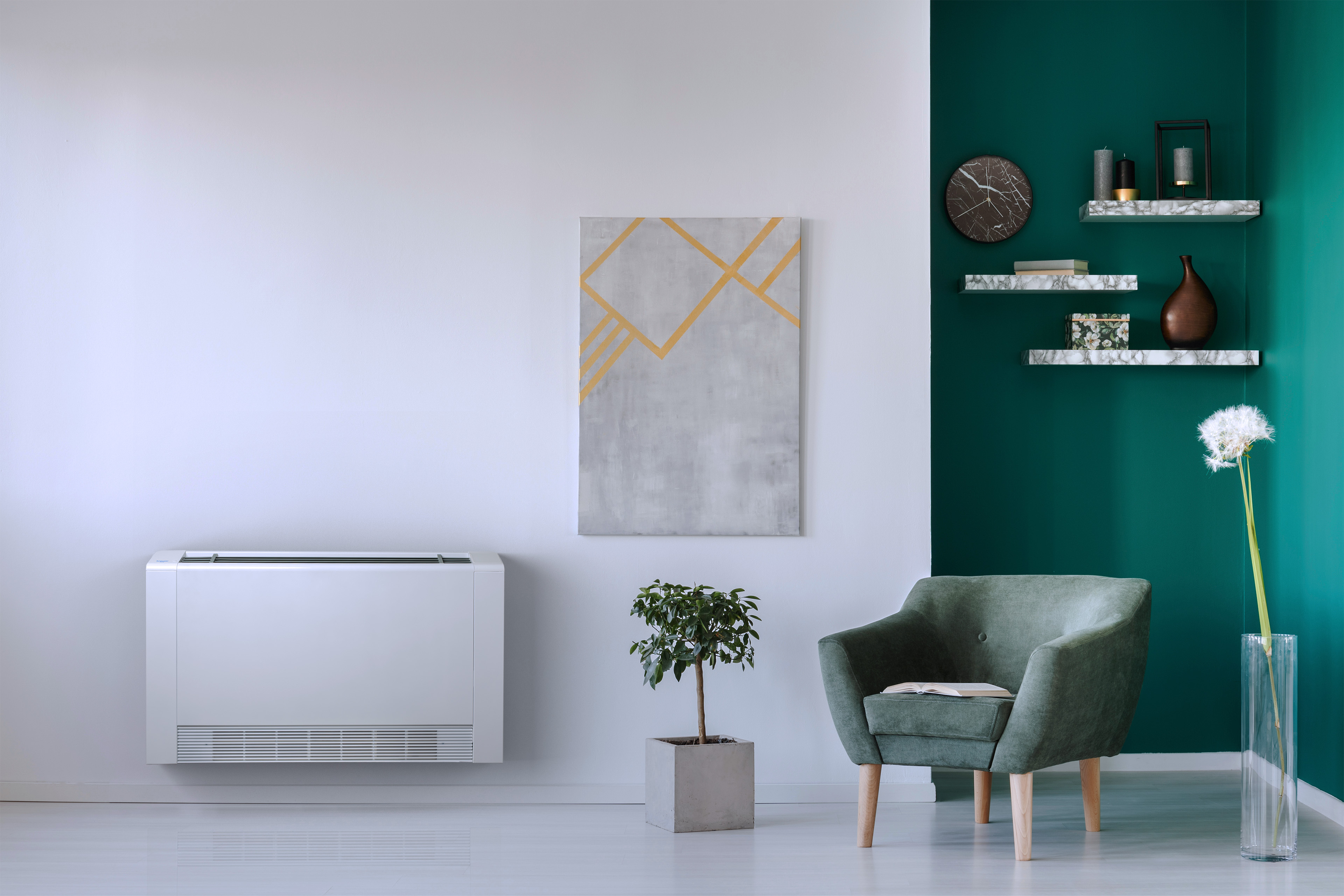

The units can be floor, wall or ceiling mounted
Smart operation.
High aesthetics.
The creation of the ideal, comfortable environment is easier than ever, with digital display – 5-speed control, Wi-Fi connectivity and great unit lifetime.
-BLDC fan motor, with adjustable rpm range
-Extremely quiet
-Low power consumption
-Slim design of 130mm
-Easy operation with touch screen or remote control
-Fan start – stop hydrostat
-Automatic fan speed switching
-WiFi connectivity
The units can be floor, wall or ceiling mounted
Specifications
| MODEL | FCS-025 | FCS-040 | FCS-060 | FCS-080 | FCS-100 | |
|---|---|---|---|---|---|---|
| Air flow | (m3/h) | 80 - 200 | 120 - 320 | 180 - 460 | 220 - 580 | 260 - 650 |
| Cooling power* | W | 1050 | 1980 | 2890 | 3620 | 4130 |
| Heating power** | W | 1500 | 2850 | 4200 | 5250 | 6000 |
| Heating power*** | W | 2600 | 3985 | 5820 | 7250 | 9480 |
| Noise level | dB(A) | 24 - 30 | 27 - 32 | 28 - 36 | 28 - 38 | 30 - 40 |
| Power supply | / | 220V/50Hz/1Ph | ||||
| Input power | W | 18 | 24 | 35 | 40 | 45 |
| Water flow | (m3/h) | 0.17 | 0.33 | 0.49 | 0.6 | 0.64 |
| Pressure drop | kPa | 12 | 14 | 18 | 20 | 24 |
| Water supply | Inch | 3/4” | ||||
| Drainage pipe diameter | mm | Φ16 | ||||
| Diamensions (L*W*H) | mm | 692*131*657 | 892*131*657 | 1092*131*657 | 1292*131*657 | 1492*131*657 |
| Net weight | kg | 15.2 | 19.6 | 24 | 28 | 33.8 |
| Notes: The water supply and the drainage are always on the same side, the motherboard and the motor on the other side. Height of optional feet: 78mm | ||||||
| *COOLING: ambient temperature (DB/WB): 27/19,5°C water temperature (inlet/outlet): 7°C/12°C **HEATING: water temperature (inlet): 50°C ***HEATING: water temperature (inlet): 70°C | ||||||
