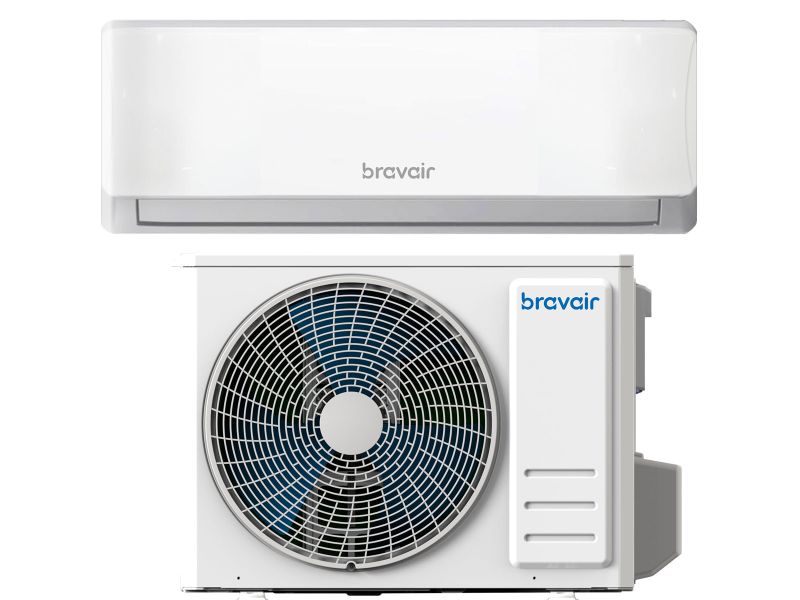

Bravair Minimax MXS
The Bravair Minimax Air Conditioning units offer great cooling and heating capacity while retaining their compact size, all thanks to their intelligent design - allowing up to 30% increased coil length on the outdoor unit compared to a traditional design.
Key Features:
- Turbo cooling capacity up to 17% higher than nominal
- Active Carbon Filter for better air quality
- Wi-Fi connectivity
- Self Cleaning Function
- Compact dimensions
- Operating ambient temperature from -15°C up to +52°C
Bravair Minimax AC units come with a 10 year warranty on their compressor
Key Features:
- Turbo cooling capacity up to 17% higher than nominal
- Active Carbon Filter for better air quality
- Wi-Fi connectivity
- Self Cleaning Function
- Compact dimensions
- Operating ambient temperature from -15°C up to +52°C
Bravair Minimax AC units come with a 10 year warranty on their compressor
Specifications
| Model | 9K MXS-09 | 12K MXS-12 | 18K MXS-18 | 24K MXS-24 | |
|---|---|---|---|---|---|
| Cooling Capacity | W | 2650 (700-3100) | 3450 (1000-4200) | 5280 (1500-6000) | 7100 (2400-8000) |
| Heating Capacity | W | 2750 (700-3200) | 3680 (1000-4500) | 5400 (1600-6100) | 7420 (2400-8300) |
| SEER Rating | A++ | A++ | A++ | A++ | |
| SCOP Rating (Warmer Climate) | A+++ | A+++ | A+++ | A+++ | |
| SCOP Rating (Average Climate) | A+ | A+ | A+ | A+ | |
| Indoor Unit Noise Level | dB(A) | 20-35 | 20-35 | 24-42 | 26-45 |
| Outdoor Unit Noise Level - at Nominal Capacity | dB(A) | 50 | 50 | 52 | 54 |
| Refrigerant Type | R-32 | ||||
| Indoor Unit Dimensions (W x H x D) | mm | 700 x 250 x 190 | 810 x 290 x 190 | 910 x 320 x 230 | 1100 x 320 x 230 |
| Outdoor Unit Dimensions (W x H x D) | mm | 738 x 246 x 462 | 738 x 246 x 462 | 800 x 285 x 520 | 860 x 290 x 530 |
| Operating ambient Temperature | °C | -15°C to +52°C | |||
